Pressure Switch

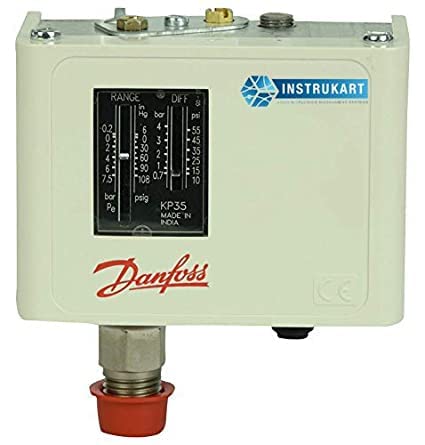

Pressure Switch, Industrial Pressure Switch, Boiler Pressure Switch, Current Pressure Switch, Air Pressure Switch, Water Pressure Switch, Oil Pressure Switch KP1 Pressure Switches control, regulate and monitor pressure in air, marine, water and heating applications. Because they play an important safety role in these applications, it’s crucial that the automatic or manual reset functions operate perfectly – so reliability and quality are paramount. Within each KP pressure switch, you’ll find a perfect interaction between the bellow, the snap mechanism and the contact system. The quick snap mechanism ensures a Class A contact function, which complies with EMC standards. A negligible bouncing time (10-15 µs) extends the life of the switch so it can withstand more than 100,000 operations, keeping your equipment working longer. And the KP can cope with vibrations ranging from 20-1000Hz at 4g, making it ideal for heavy duty applications.

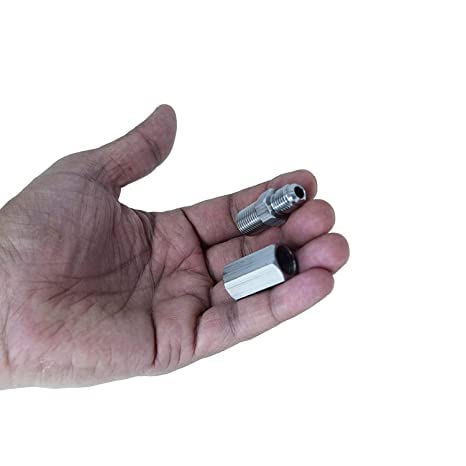

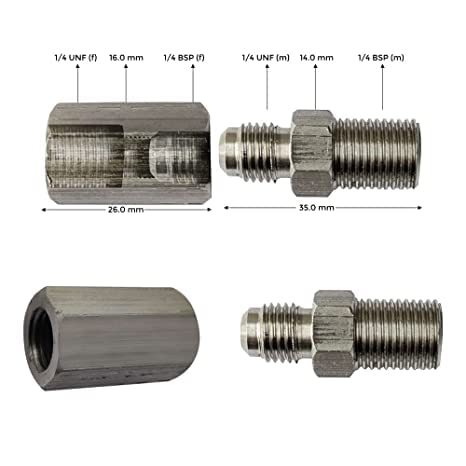

• Reducer1 Connection Size : 1/4 UNF(F) X 1/4 BSP(F); Reducer2 Connection Size: 1/4 UNF (M) X 1/4 BSP (M) |Ultra-short bounce time thanks to snap-action function (reduces wear to a minimum and increases reliability) | Manual trip function (electrical contact function can be tested without the use of tools)
• Compact design | Fully welded bellows element | High reliability both electrically and mechanically
• Regulating Range: -0.2 to 7.5 bar | Ambient Temperature Range: -25 °C to 65°C | Differential Range: 0.7 to 4.0 bar | Max. test pressure [bar] Pe: 20 bar | Max. Working Pressure [bar]: 17 bar
• Approvals: CE-marked in accordance with: LVD 2014/35/EU (EN 60947-1, EN 60947-4-1, EN 60947-5-1) Underwriters Laboratories Inc., UL | Enclosure rating IPIP44
• Supply Scope: 1 unit of KP 1 Pressure Switch and Instruction Manual.Applications: Water Pump Control, Steam Boilers, Industry Applications, Power Plants, Refrigeration Compressors, Air Conditioning Systems, Heavy Engineering, Turbines, Industries, HVAC, Gas Compressor
